Use cases

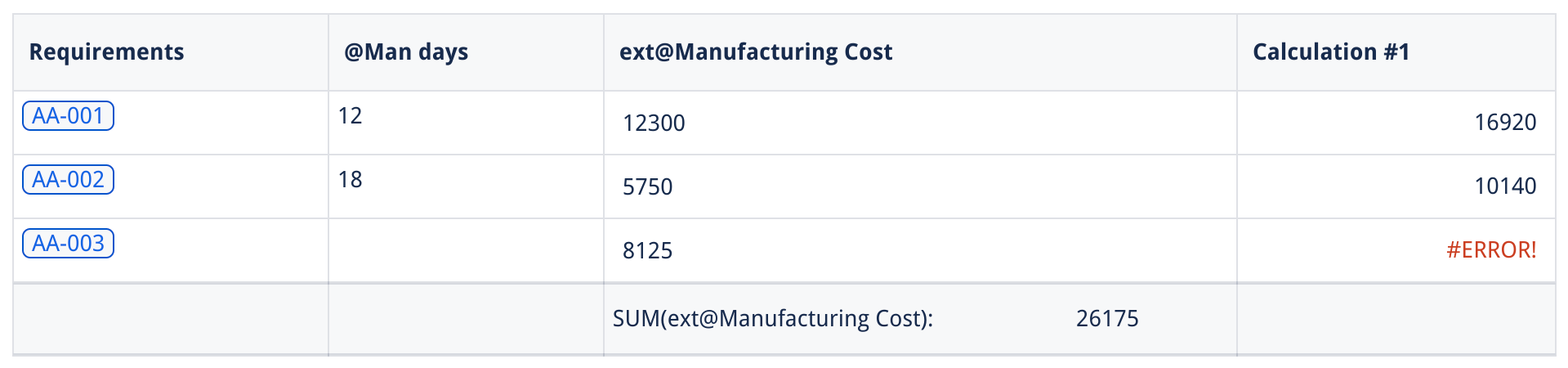

Estimate the cost of a requirement

1.2 * (@Man\ days * 150 + ext@Manufacturing\ Cost)

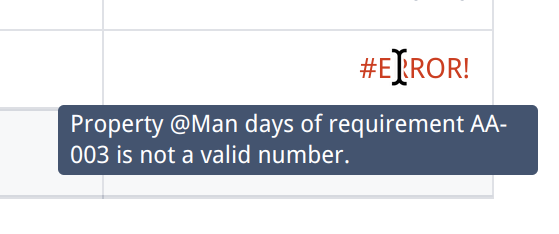

Here, we see that the result for requirement AA-003 is marked as error because the property @Man days used in the calculation is not a valid number.

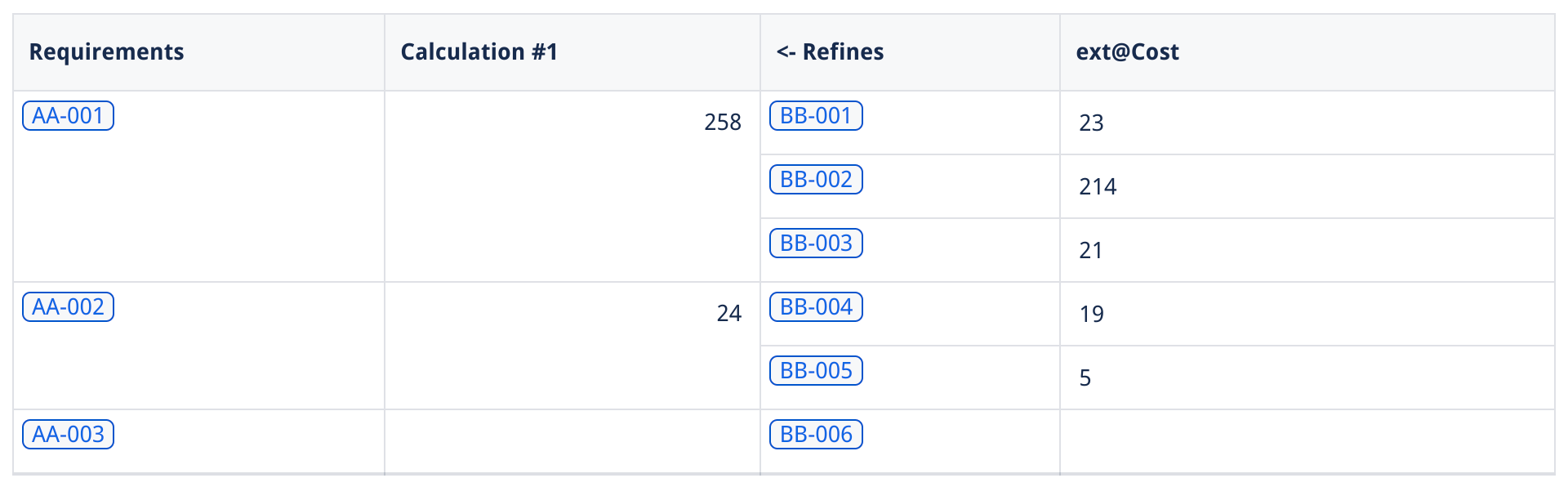

Estimate the total cost of a parent requirement

SUM(ext@Cost, child)

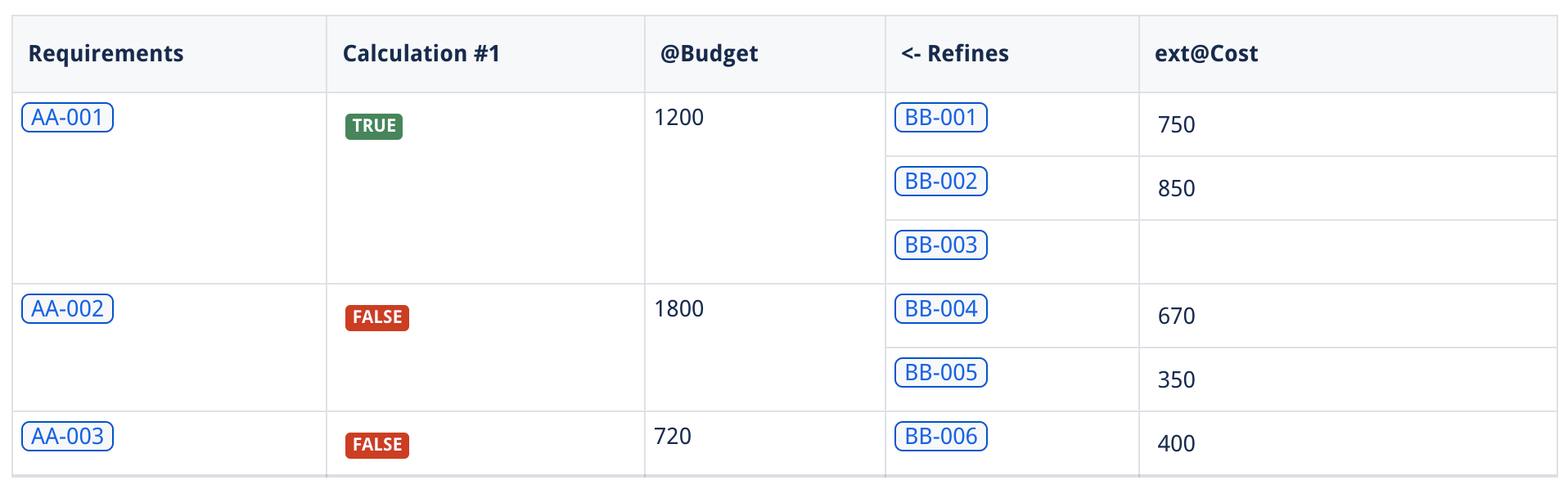

Detect when a parent requirement is over budget

SUM(ext@Cost, child@Uses) > @Budget

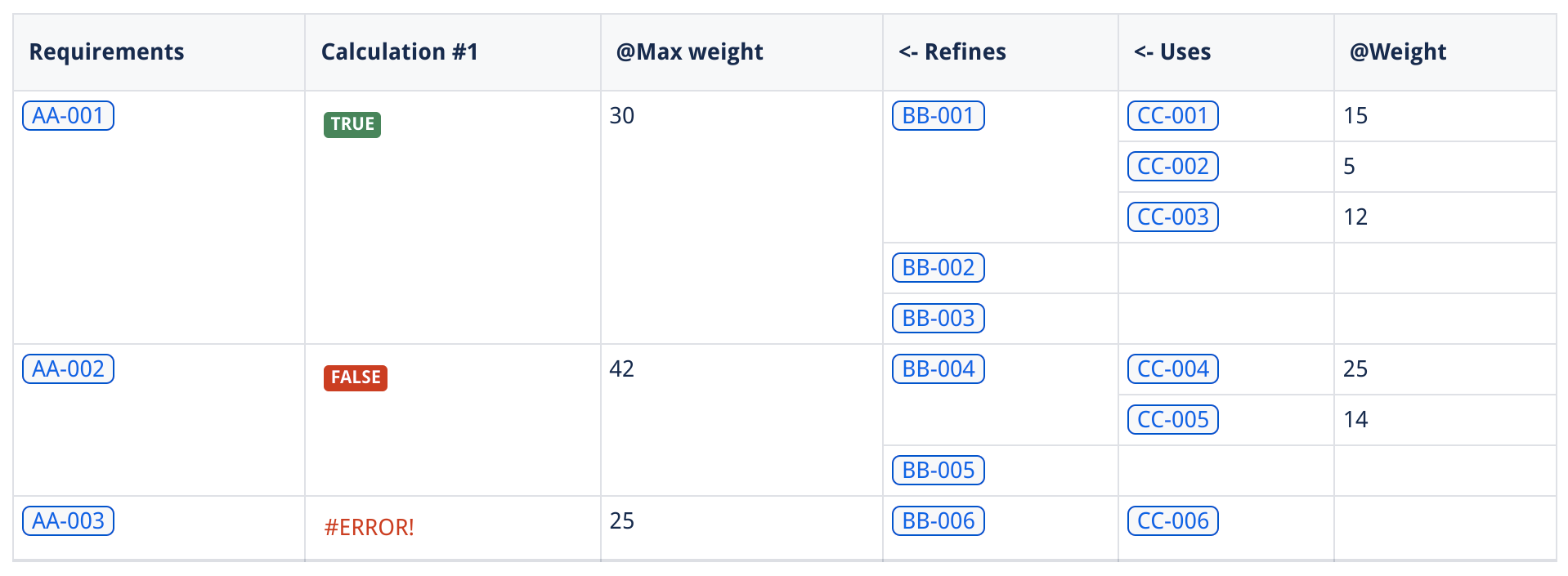

Detect when parts composing an assembly are too heavy

SUM(@Weight, child@Refines→child@Uses) > @Max\ weight

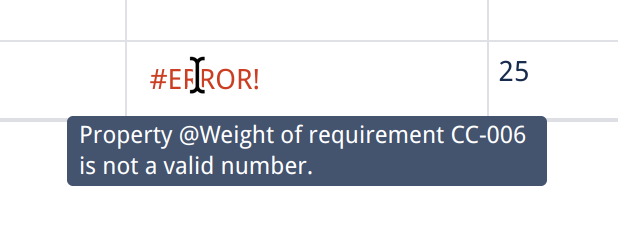

Here, we see that the result for requirement AA-003 is marked as error because the property @Weight used in the calculation is not a valid number.

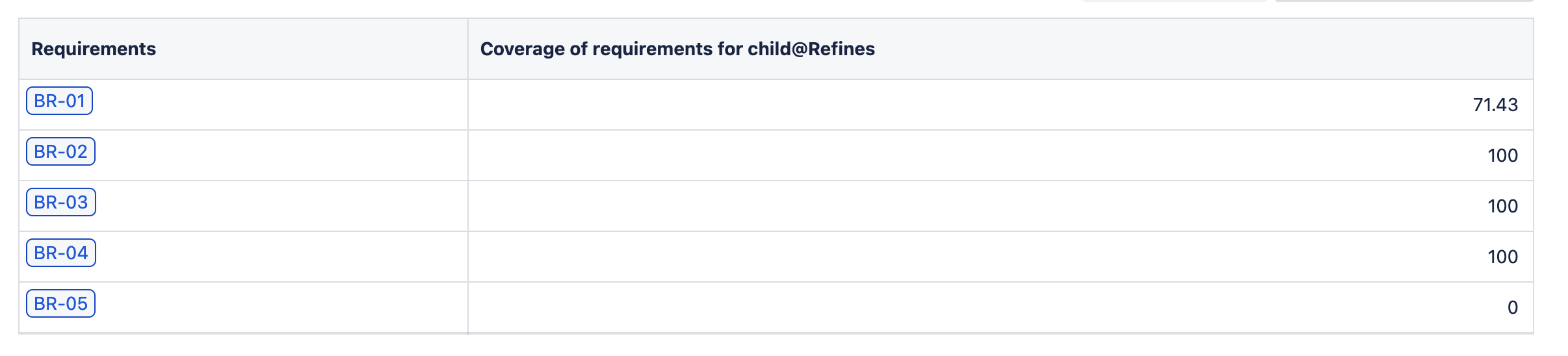

Measure the coverage of a requirement

Percentage per relationship name

100 * IF(COUNT(child) = 0, 0, COUNT(child@Refines) / COUNT(child))

Here, this will tell you out of all children of BR, how many of them use the relationship ‘@Refines’, this is why it is necessary to specify a relationship name.

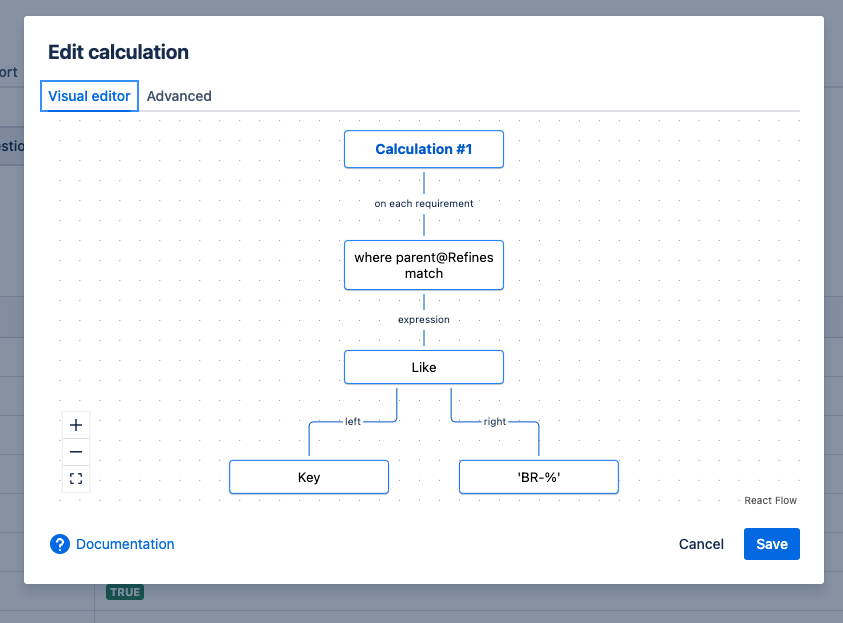

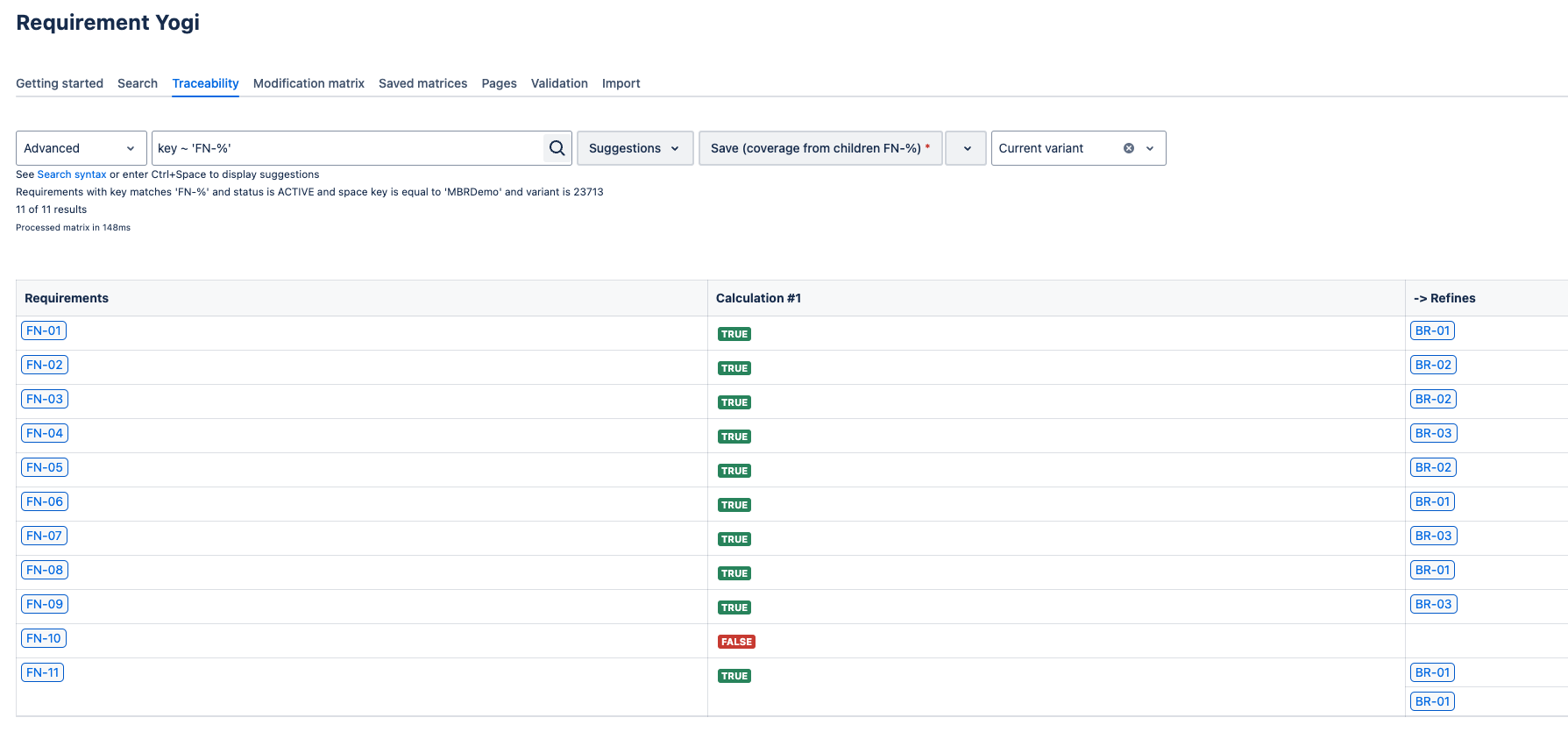

Does the requirement have a dependency?

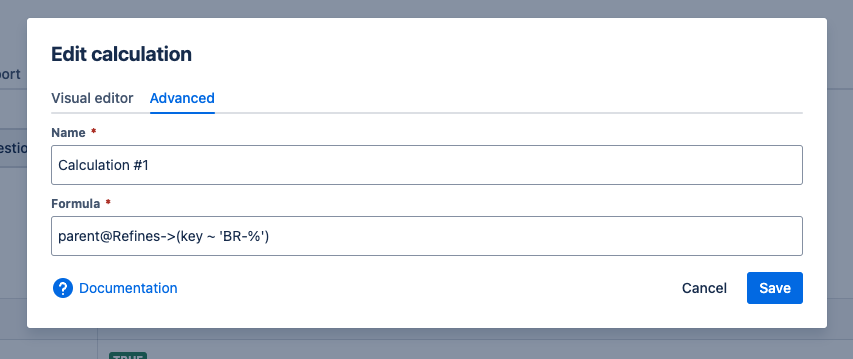

parent@Refines->(key ~ 'BR-%')

To know if a requirement has a parent or child with the relationship ‘@Refines’ with the key ‘BR-%’.

• This will give you a true or false answer.

• It can also be used with the child relation, and key ~ '%'

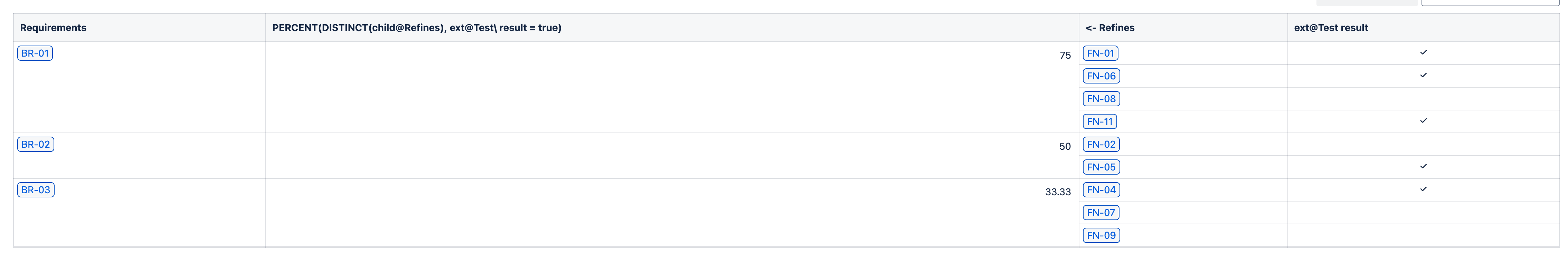

Measure the Test Coverage of children requirements

PERCENT(DISTINCT(child@Refines), ext@Test\ result = true)

Percentage of children requirements with relationship Refines, having an external property "Test result" completed
